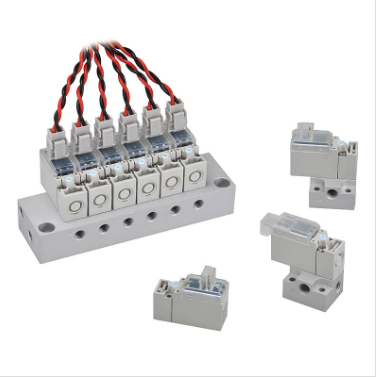

The width of the body is 10 mm
Port number 3
Job No. 2
Medium air
Working pressure range 0~0.7 mpa, 0~0.9 mpa (Type A)
Effective orifice (mm) 2) P→A: 0.28, 0.09; A→R: 0.35
Response time DC: 4 ms, AC: 20 ms ※ The rated voltage pressure is 0.5MPa.
Maximum operating frequency 5 Hz
Ambient temperature +5 °C to +50°C
E_MVDY-100.pdf
Voltage AC110, AC220V (50/60) Hz, DC6/DC12/DC24V
Power consumption AC= 1.6/2.5VA, DC6/12/24=1.2W, DC24=0.55W (Type A)
Available voltage range ±10%
Insulation class B
Weight 12g
