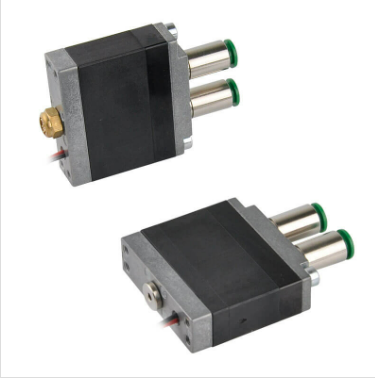

Mindman MVDA-120

WhatsAPP:+86 17602953951

Email:sales003@milanoautotrading.com

The body width is 12 mm

Port number 2, port number 3

Job No. 2

Medium unlubricated dry air, neutral gas

Operating fluid temperature -- 10~+50°C

Working pressure range 0~0.8 mpa, 0.4~0.8 mpa

Flow rate is 100 kN/min, 80 Newtons/min

Response time On: < 2 ms, < 5 ms Off: < 2 ms, < 1.3 ms

Ambient temperature: -10 °C to +50°C

Filter grade minimum 40 μm

Voltage acceleration: DC 24V, hold: DC 5V, DC 12V

Power consumption 0.8 watts (hold), 1 watt

The maximum operating frequency is 300 Hz (250Hz when the driver board is used) and 150Hz

IP protection Level IP62 Protection level

Weight 35g, 70g
