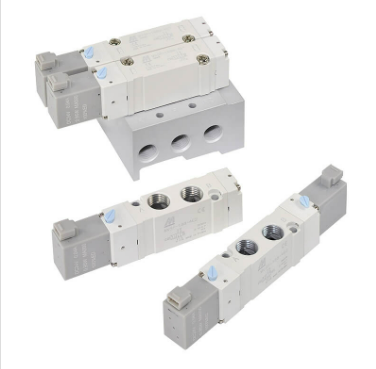

The fuselage width is 18 mm
Hole number. 8 a
Port size 1/4
Port number 5
Job numbers 2, 3
Medium air
Working pressure range 0.15~0.7 mpa, 0.2~0.7 mpa (5/3)
Withstand voltage 1 mpa
Flows range from 599 to 1470 kN/min
Effective orifice 15mm 2, 16.3/27/12.4mm 2 (5/3)
Response time DC < 23 ms, AC < 35 ms, DC < 33 ms, AC < 45 ms (5/3)
Ambient temperature -5~+50°C (no icing)
Voltage AC 110V, AC 220V (50/60) Hz, DC 12/24V
Power consumption AC =2.5 volt-ampere, DC =0.95 watts
Available voltage range ±10%
Insulation class F
Weight 96g, 132g, 142g
