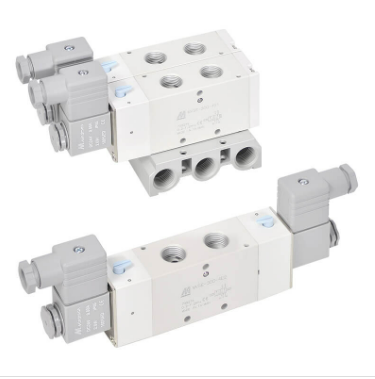

Body width 30 mm

Hole number 10 Ann

Piping caliber 3/8

Port number 5

Position number 2, position number 3

Moderate air

Working pressure range 0.2~1.2 mpa, 0.3~1.2 mpa (5/3)

Withstand pressure 1.5 mpa

Flow 1851, 1,906 L/min

Effective Port 34.5, 35mm 2 (5/3)

Response time is 50 milliseconds

Ambient temperature -5~+50°C (no icing)

Voltage AC 110V, AC 220V (50/60) Hz, DC 24V

Energy consumption AC =6/4.9 volt-ampere, DC =2 watts

Available voltage range ±10%

Insulation class F

Weight 406 g ~577 g
