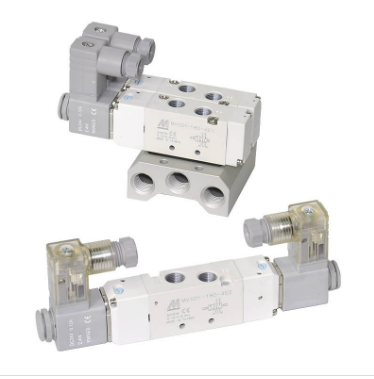

The fuselage width is 18 mm
Hole number. 6 a
The port size is 1/8
Port number 5
Job numbers 2, 3
Medium air
Working pressure range 0.15~0.8 mpa, 0.2~0.7 mpa (5/3)
Withstand voltage 1 mpa
Flow 653 L/min, 490 L/min (5/3)
Effective orifice 12mm 2, 9mm2(5/3)
Response time is 30 milliseconds
Ambient temperature -5~+50°C (no icing)
Voltage AC 110V, 220V (50/60) Hz, DC24V
Power consumption AC =3.7/3.1 volt-ampere, DC =2.9 watts
Available voltage range ±10%
Insulation class F
Weight 124g ~ 190g
